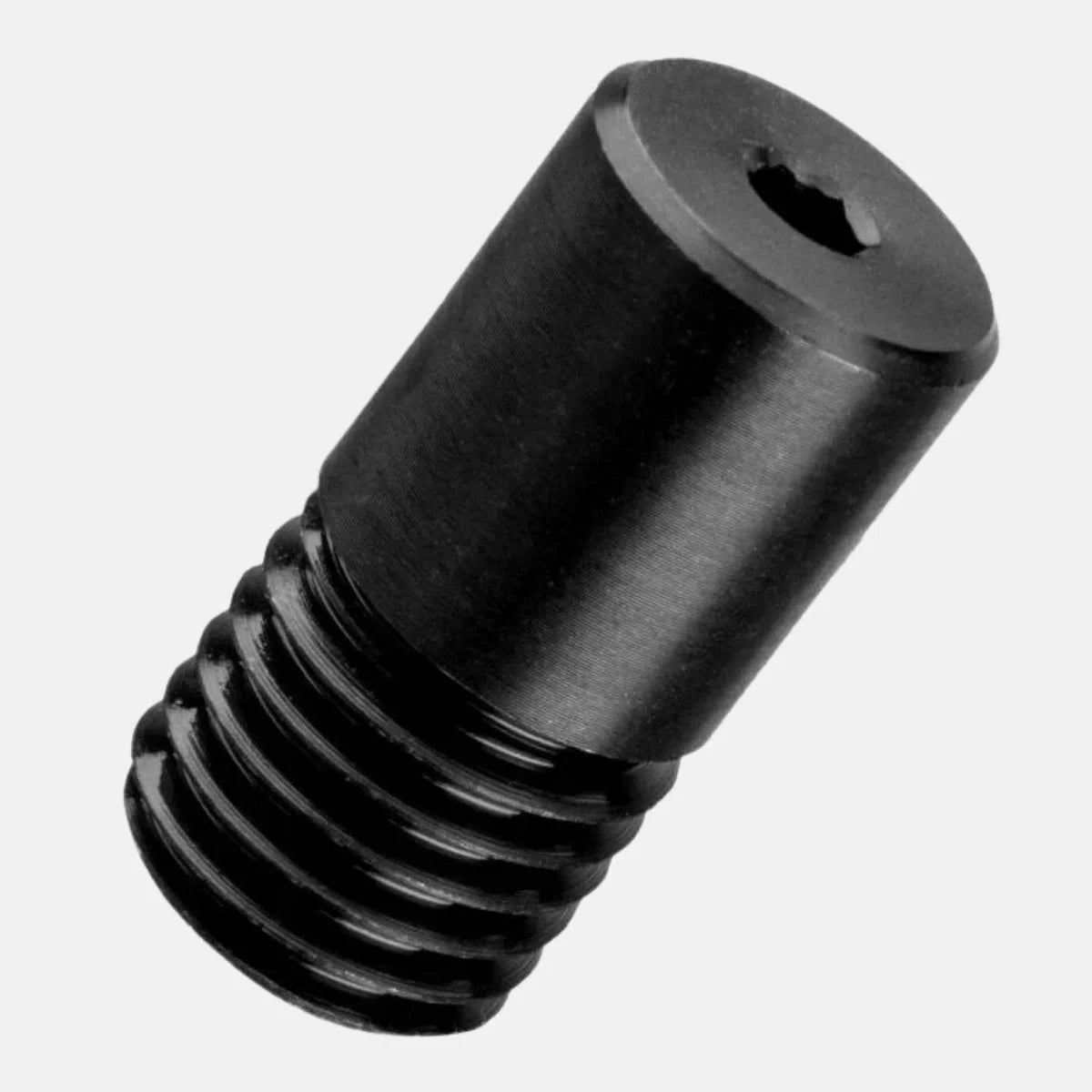

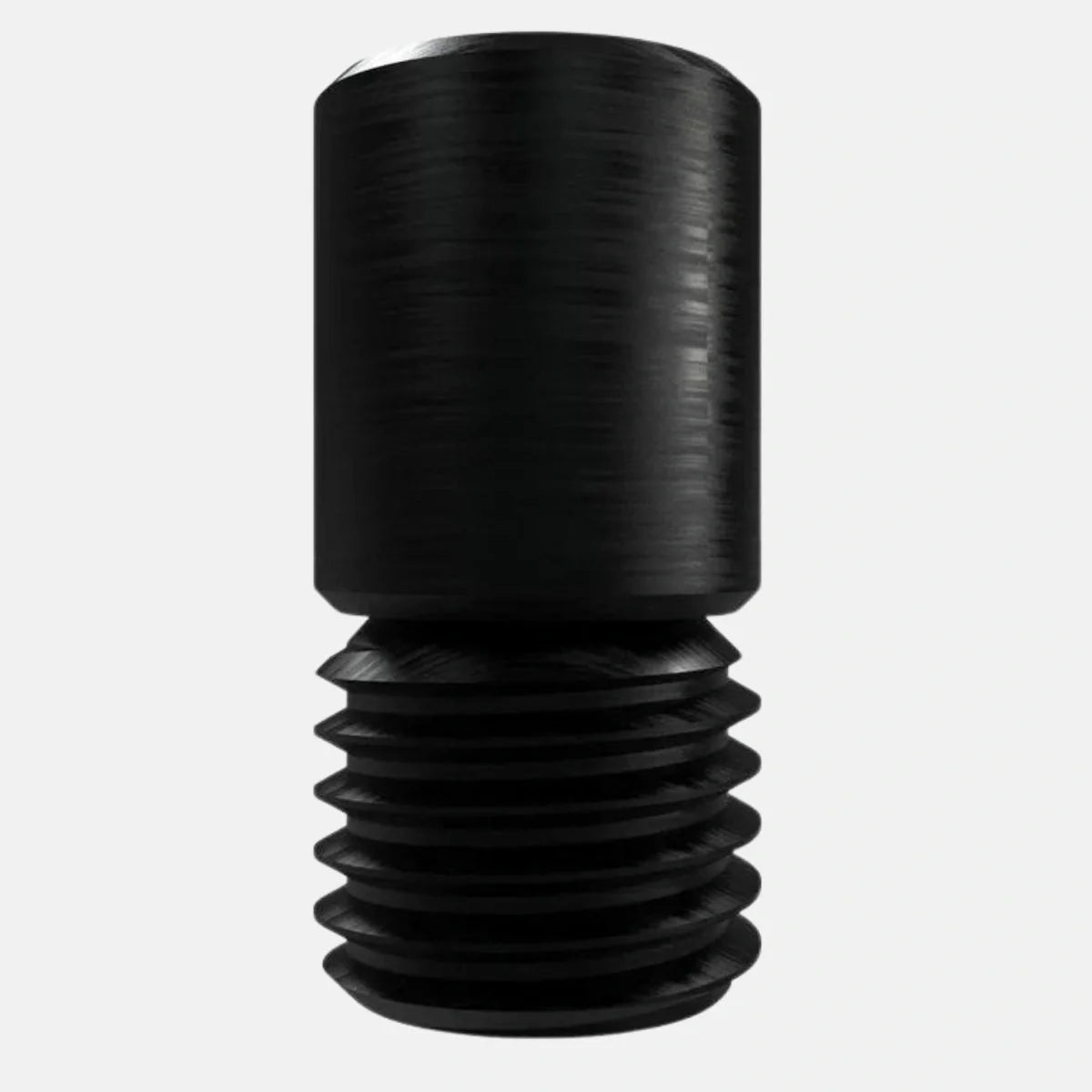

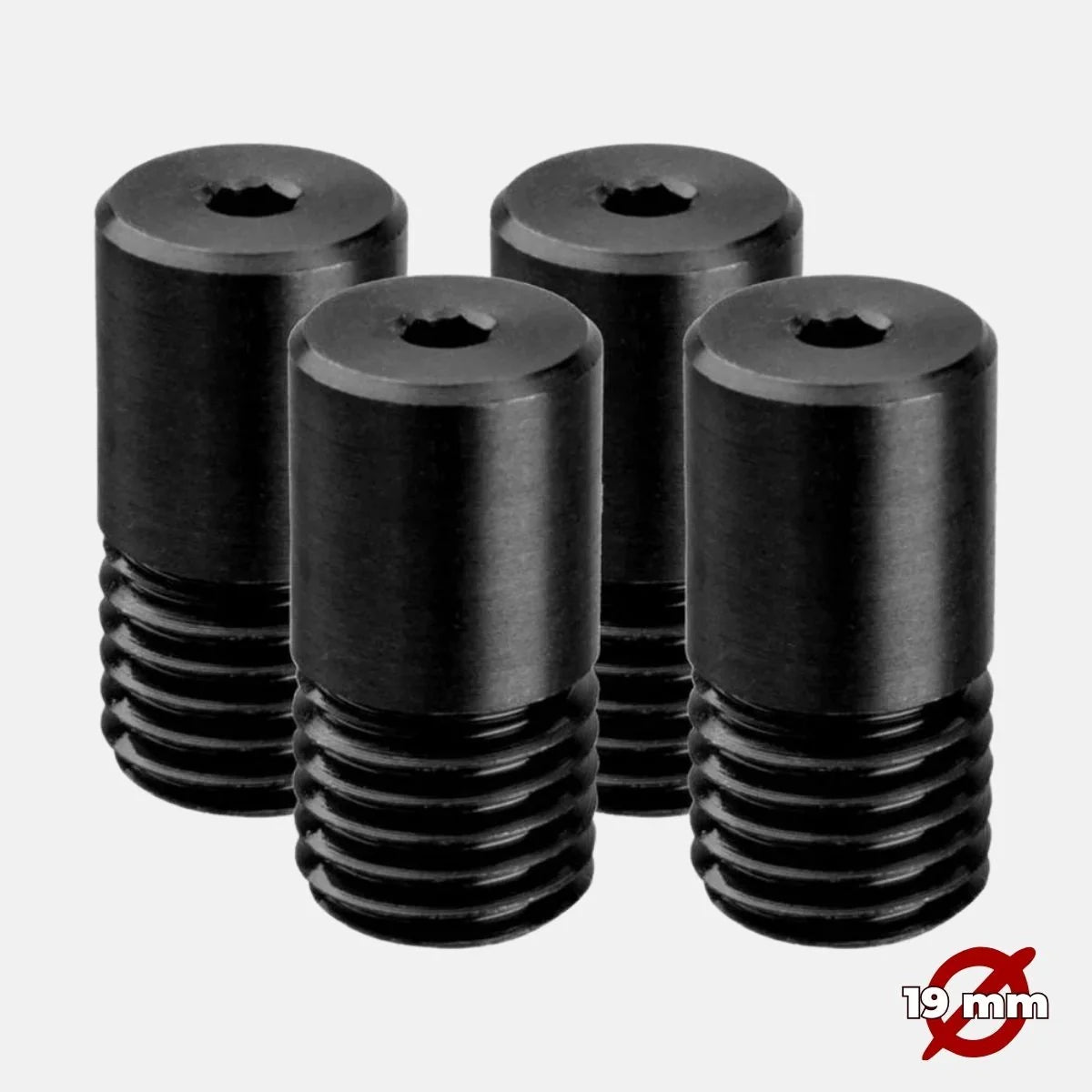

Stud pins are a basic element of the Fireball fixture system. They feature a 19 mm deep threaded portion with M20 x 2.5 thread and a smooth 19 mm diameter by 22 mm deep stud.
Stud pins are designed to quickly align fixture elements with the table and provide the “dowel” in the dowel and pin design used in our Extension Block System.
Stud pins feature a 5 mm hex drive for tightening and removal, which is the same hex drive size as the socket head cap screws used in the Extension Block System.
