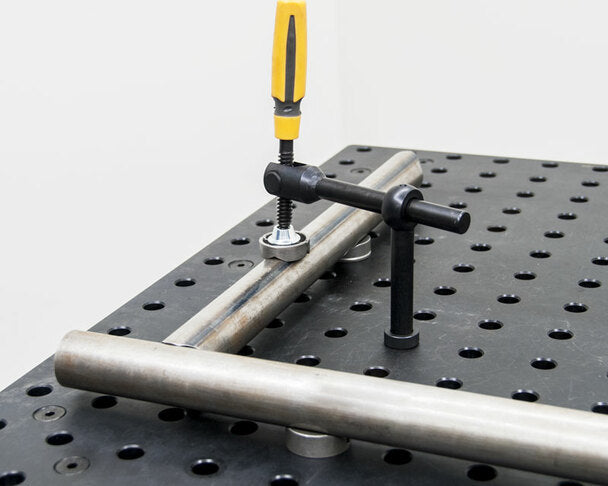

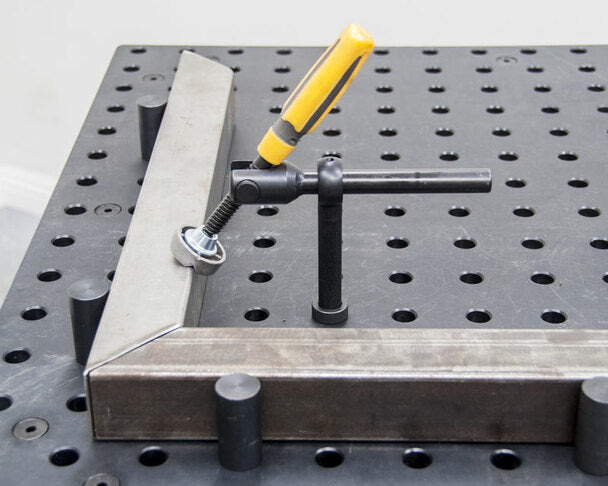

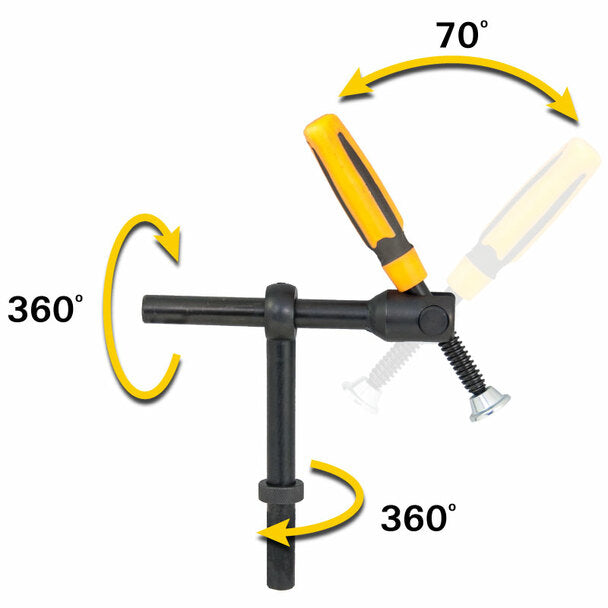

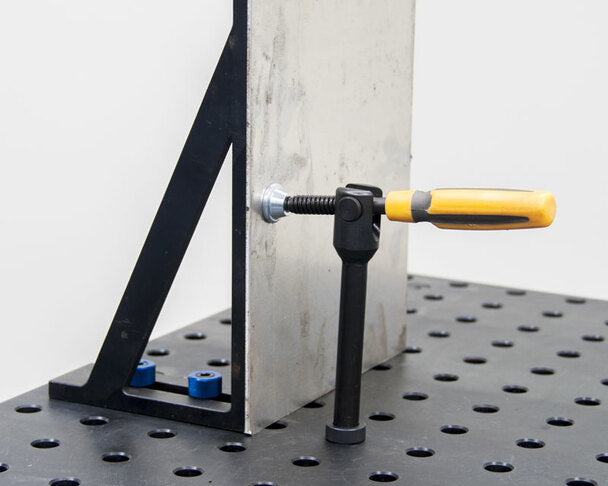

Use the versatile Pivoting T-Post Clamp to apply vertical, horizontal, or angled clamping force.

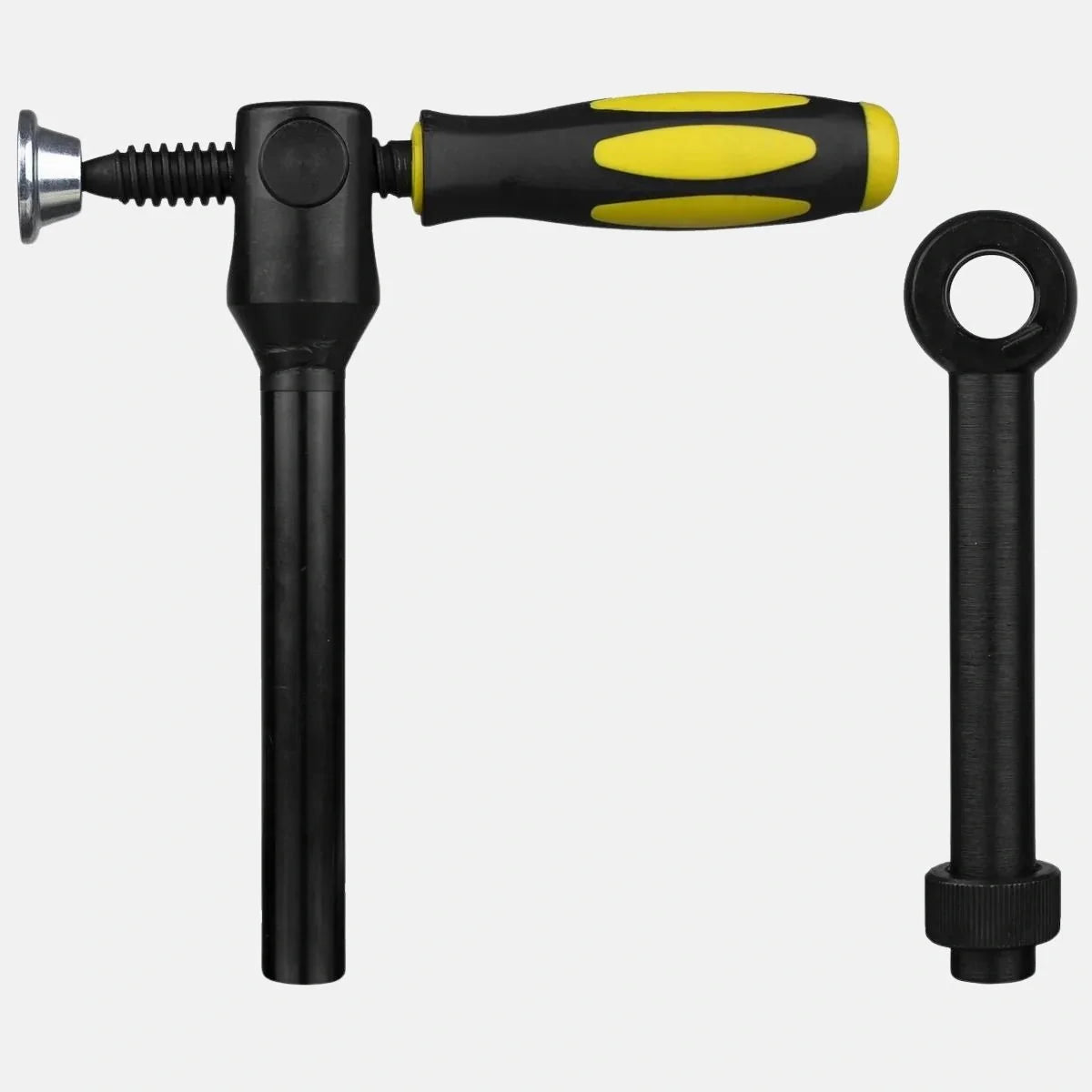

Clamping arm can be separated from the vertical post portion to be used for horizontal clamping.
Your plate or table must have adequate clearance underneath the system holes in order to take advantage of this clamp’s low profile design. The lower the object height being clamped, the longer the length of the vertical post will be underneath the table surface.
A magnetic top V-Pad is included for clamping round stock and square tubing edges.
| Clamping Capacity | Throat Depth | Weight |
|---|---|---|
| Max. 140 mm | 44.5 - 127 mm | 0.9 kg |
