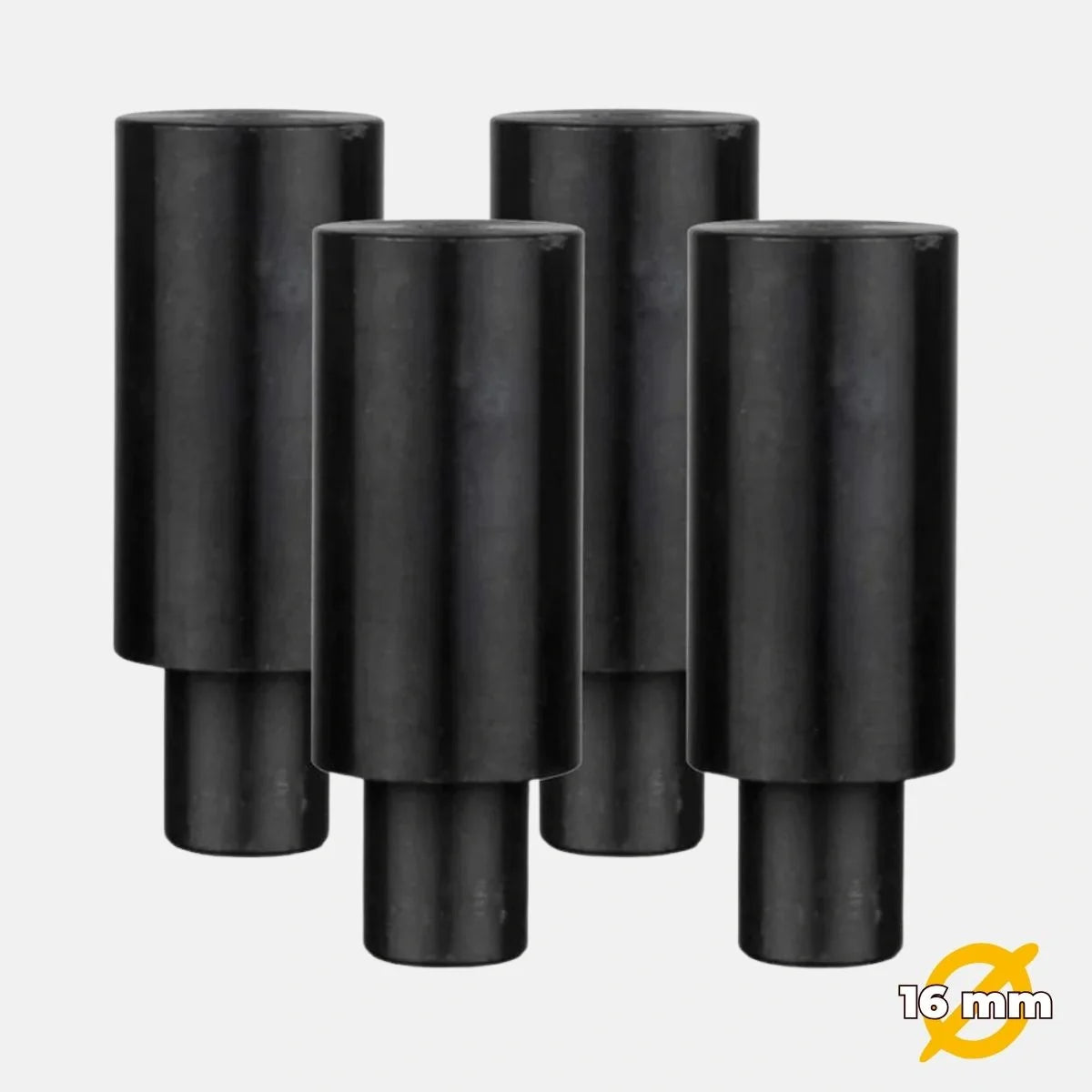

Use the Locating Pins as a stop wherever parts need to be positively located for clamping.
These stops are turned and finished off with a black oxide and oil bath, they are slightly undersized at the bottom to slip fit into 16mm table holes.

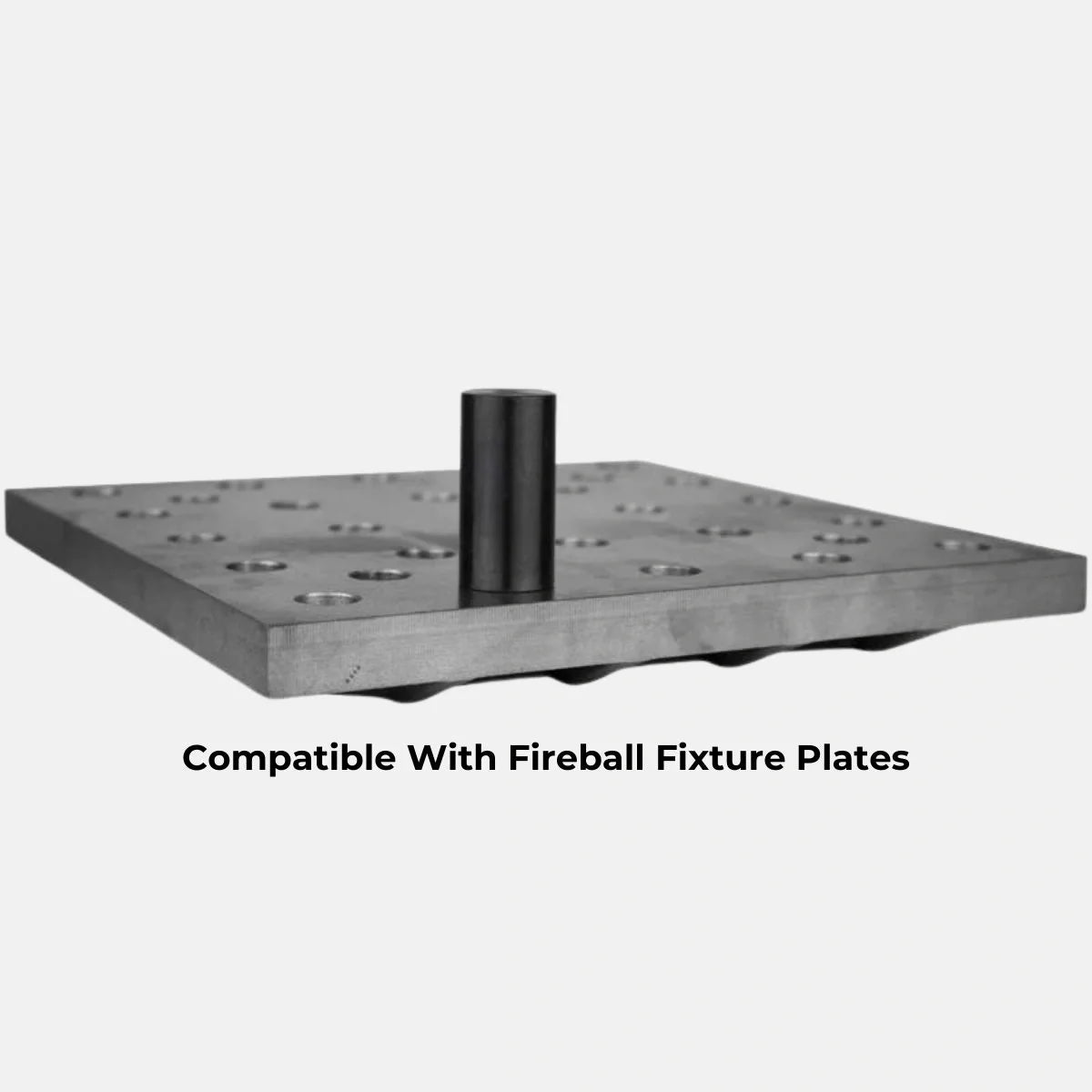

Use a pair of pins to quickly set up (locate) an edge on your fixture tables. Use 4 pins together to quickly create a 90 or 45 degree angle. These work great with the BuildPro Inserta Clamps available through our site here as the fastest, simplest way to setup common angles.

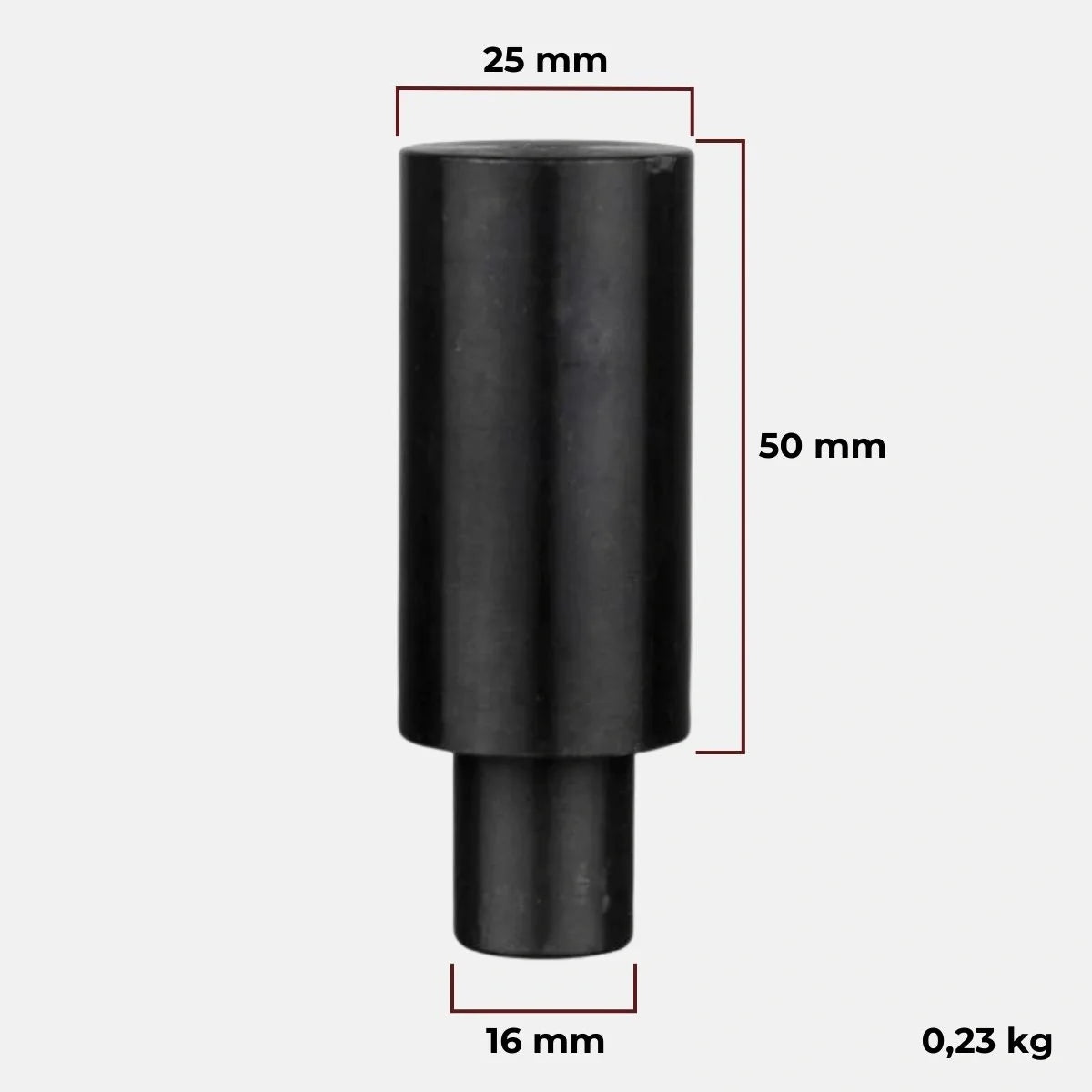

Qty | Top Diameter | Bottom Diameter | Top Height | Weight |
---|---|---|---|---|
4 | 25 mm | 16 mm | 38 mm | 0.23 kg |
