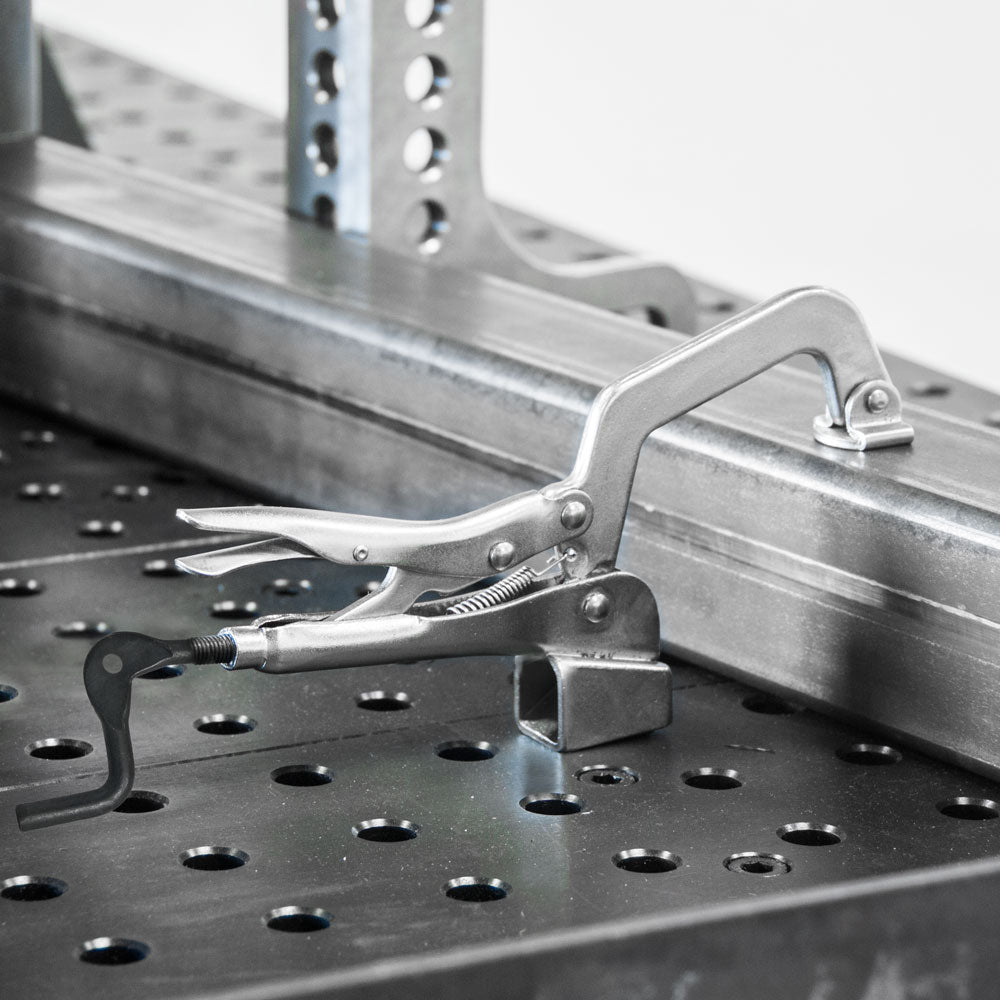

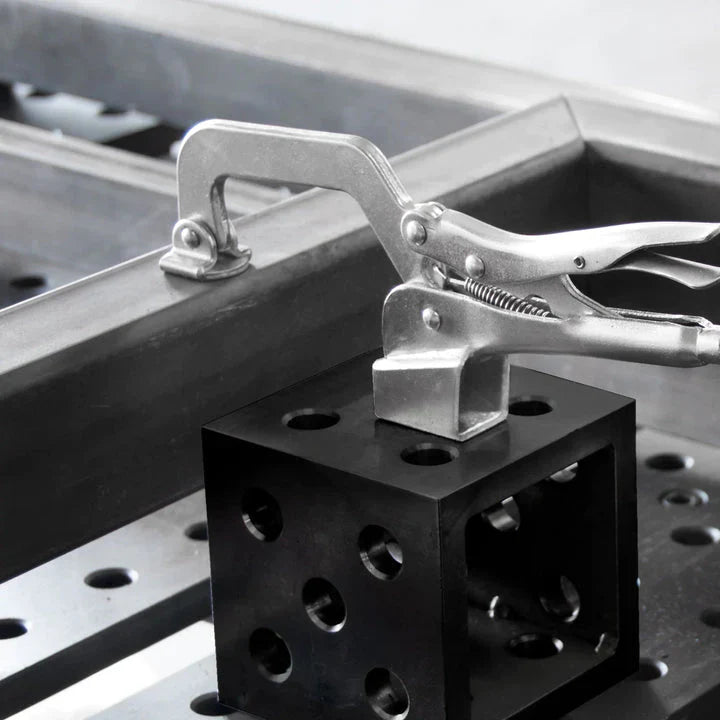

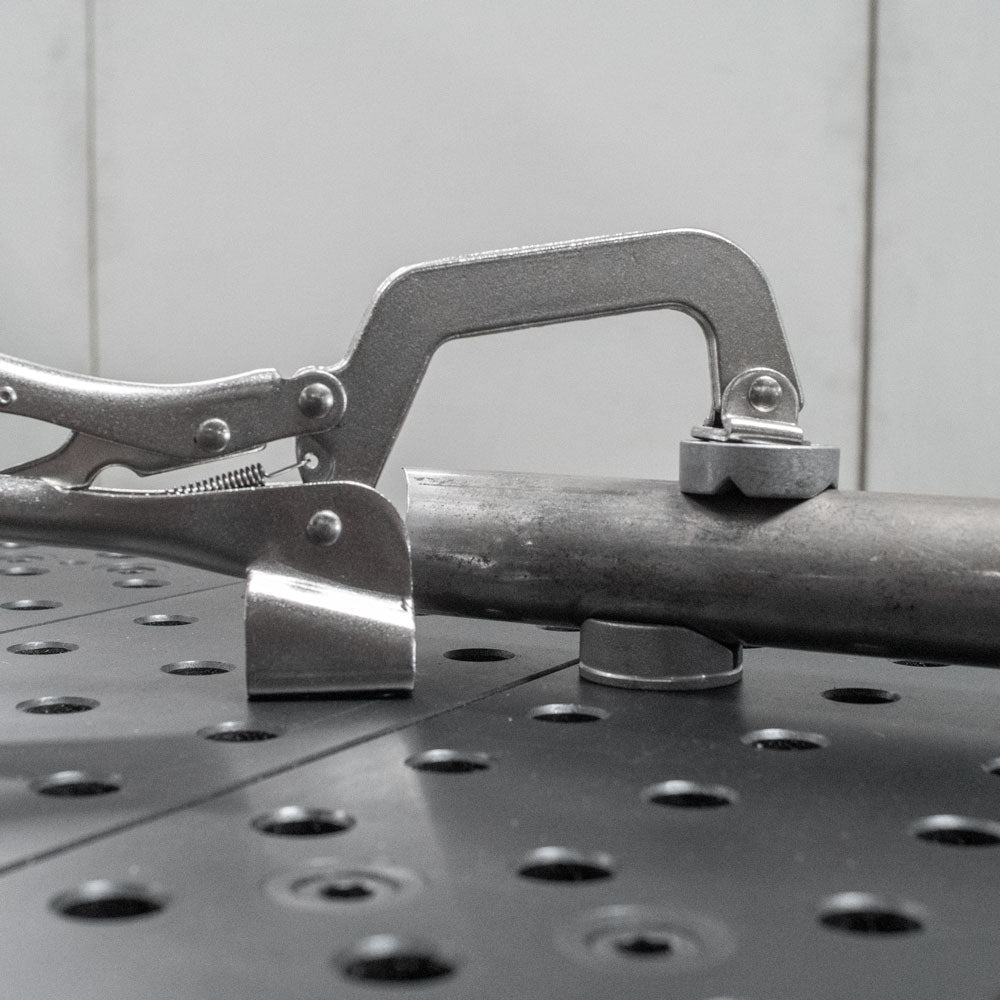

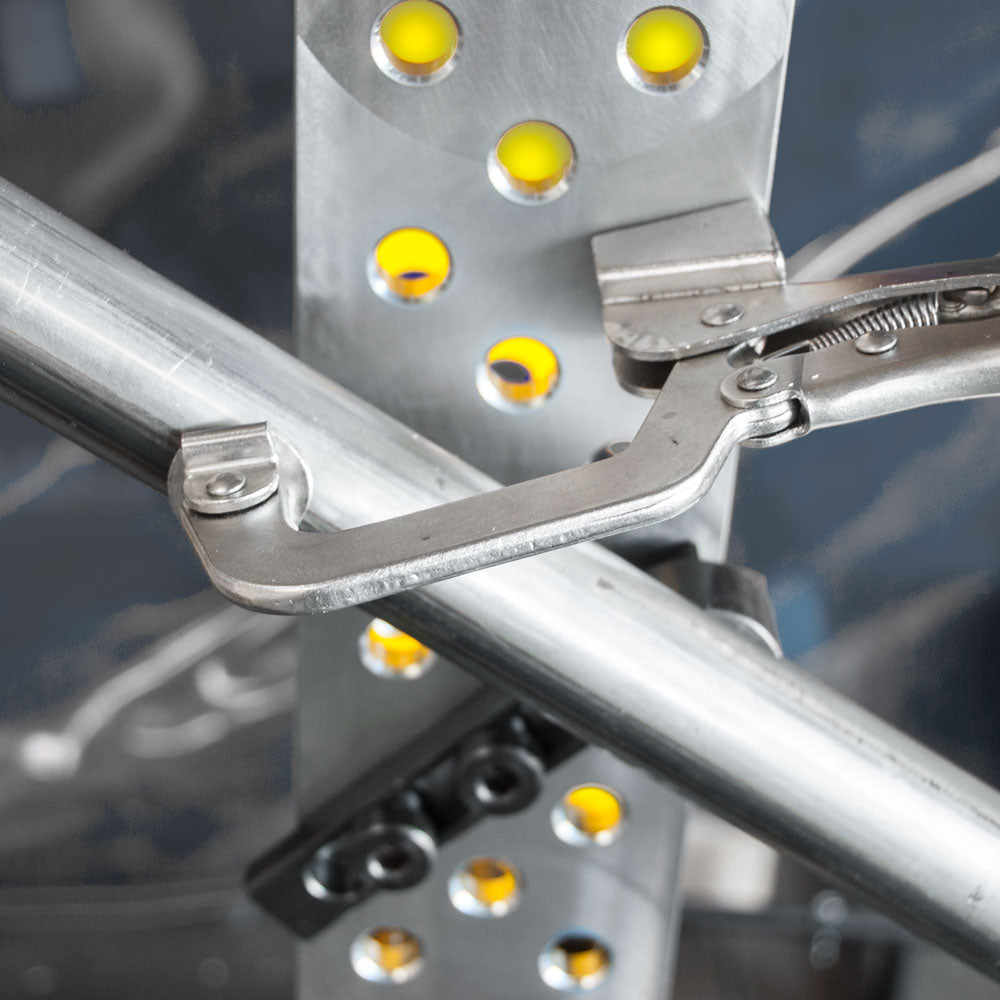

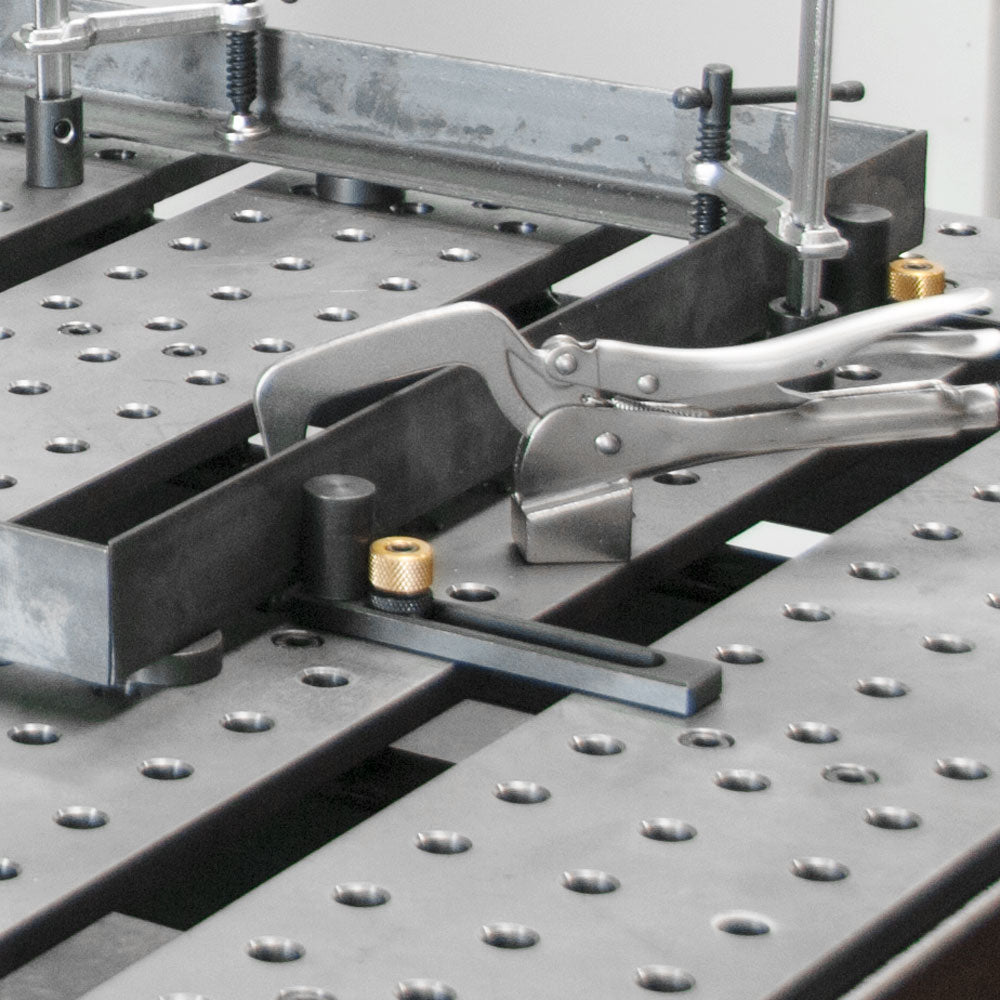

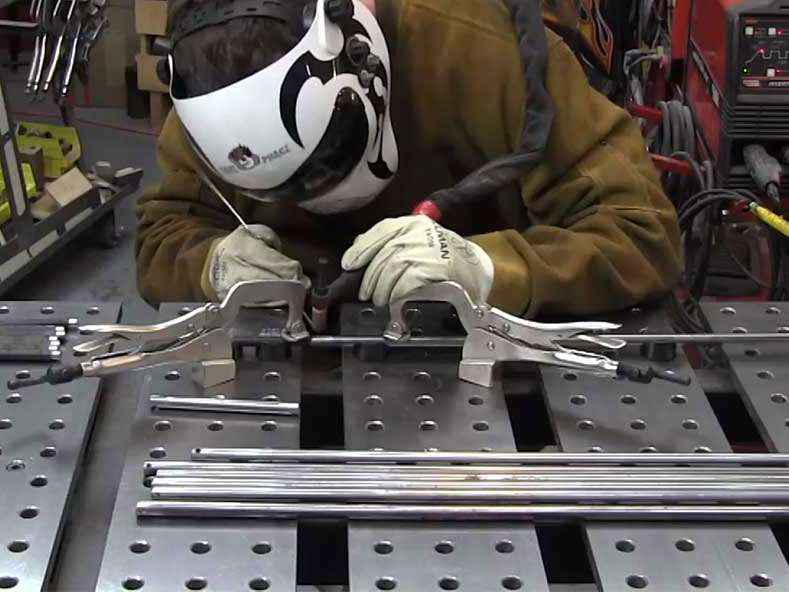

Insert into ∅ 16 mm for fast hold-down clamping.
The patented rear crank handle allows clamp pressure adjustment while the clamp is in locked position.
Use the crank handle to pre-set the clamp opening in repetitious clamping applications.

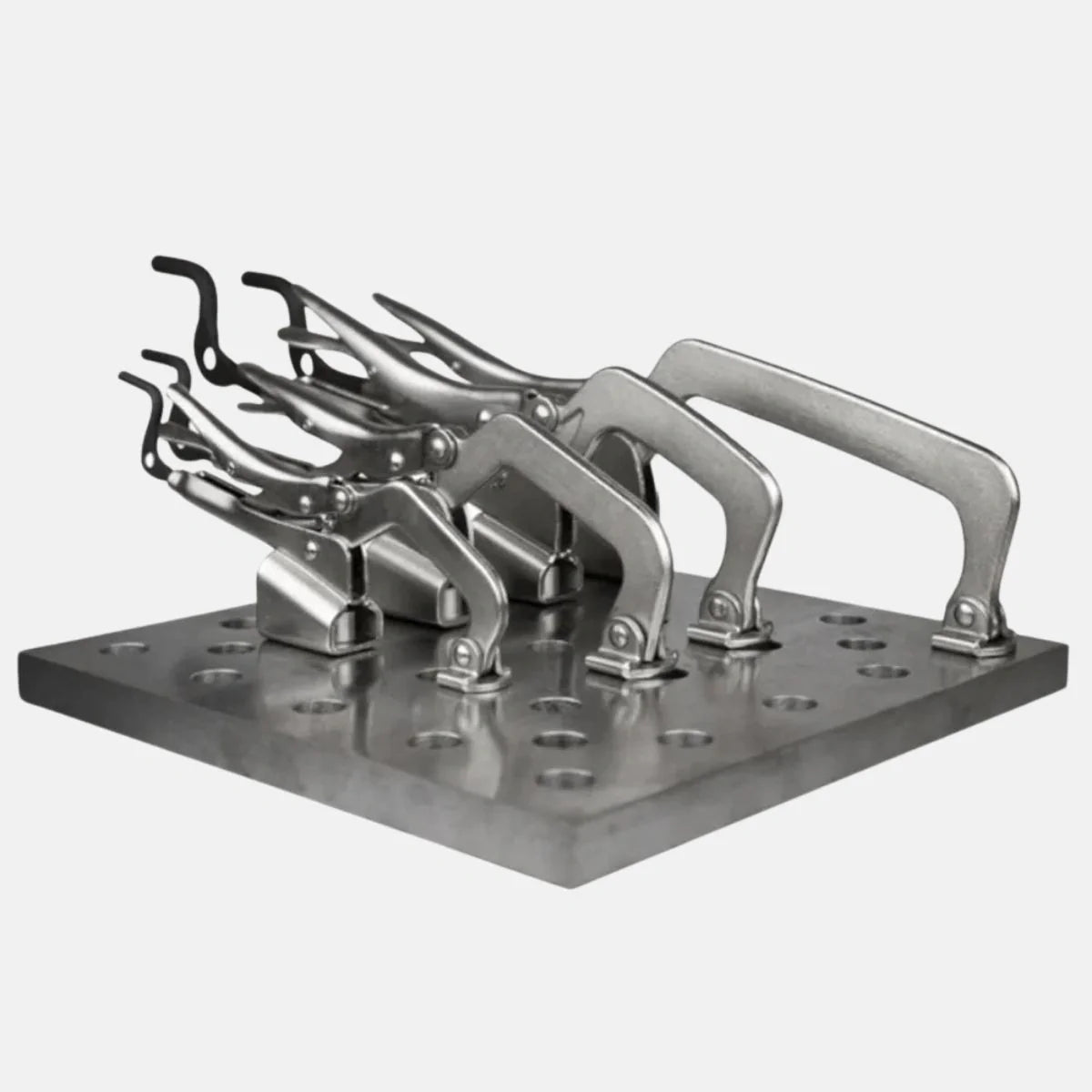

| Part No. | Throat Depth (mm) | Opening B (mm) | C (mm) | Weight (kg) |
|---|---|---|---|---|

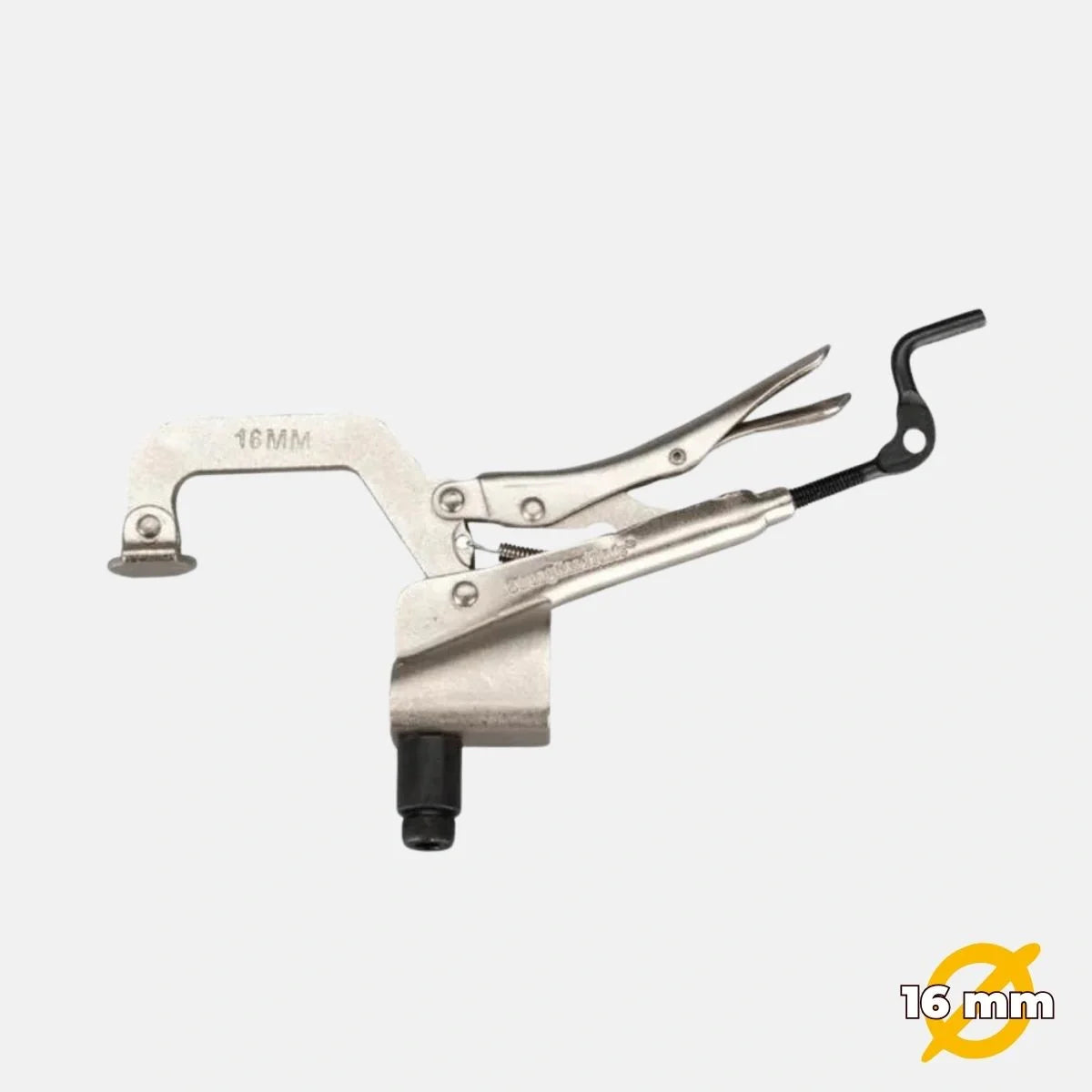

| PT07K | 50 | 60 | 150 | 0.3 |

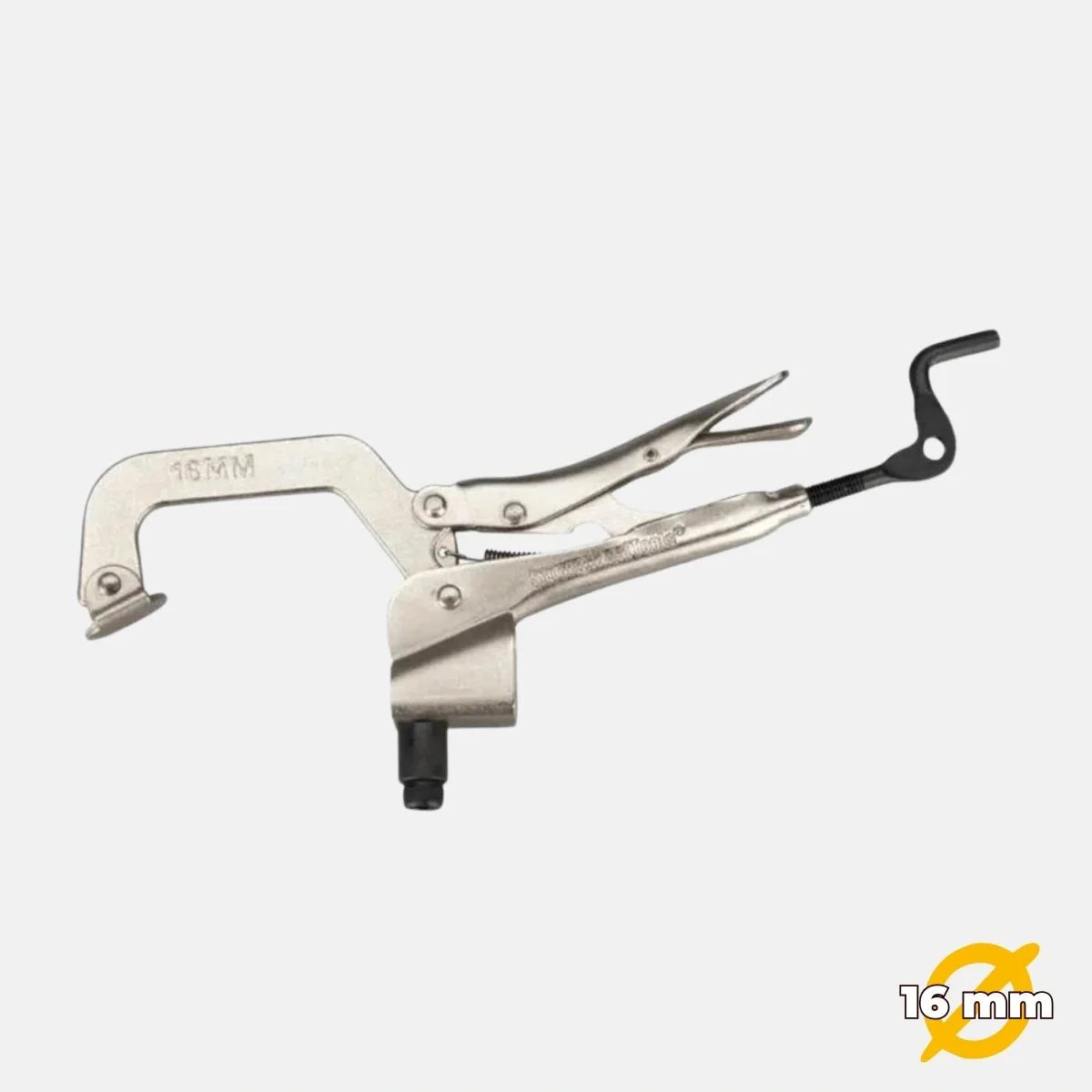

| PT09K | 75 | 100 | 200 | 0.4 |

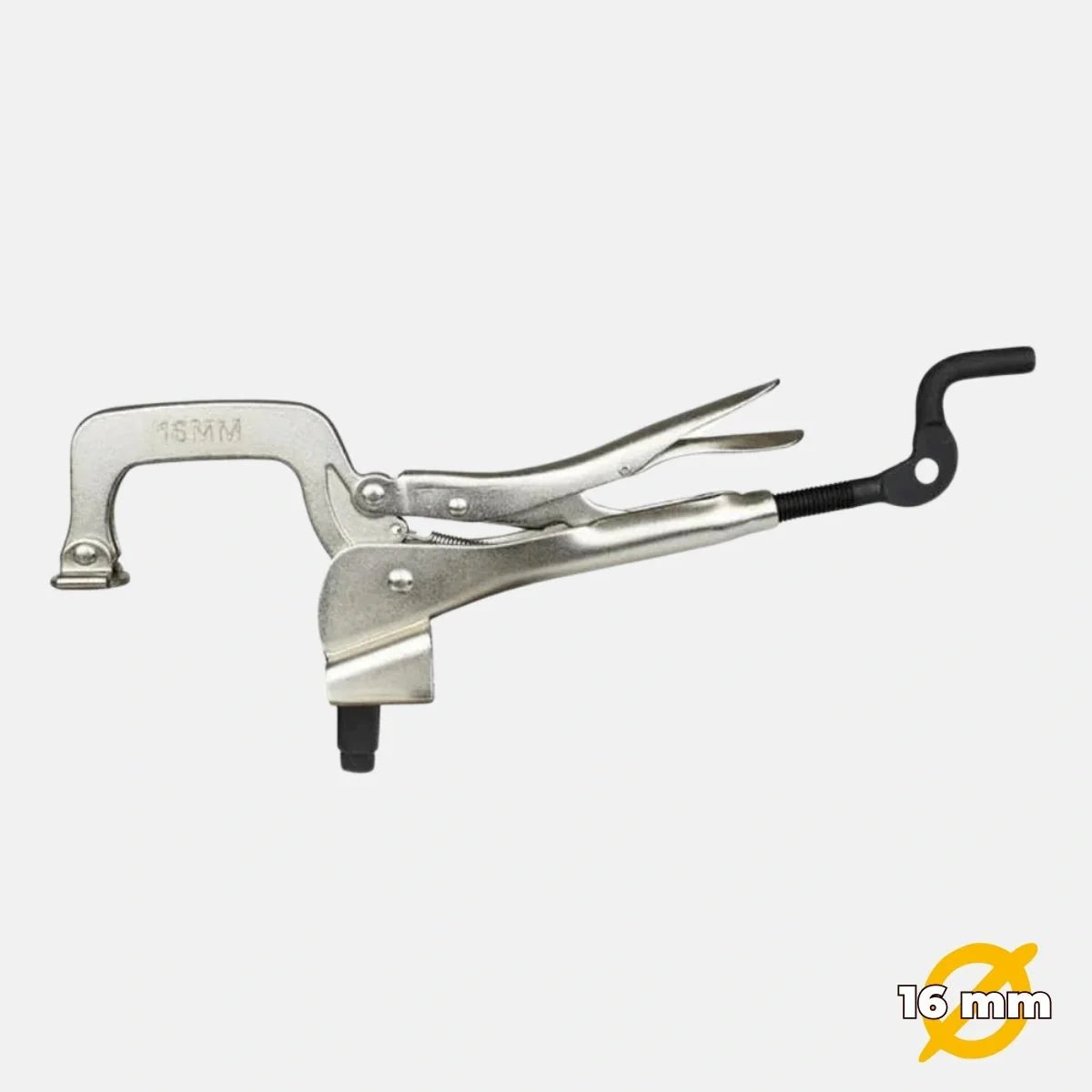

| PT11K | 85 | 100 | 265 | 0.7 |

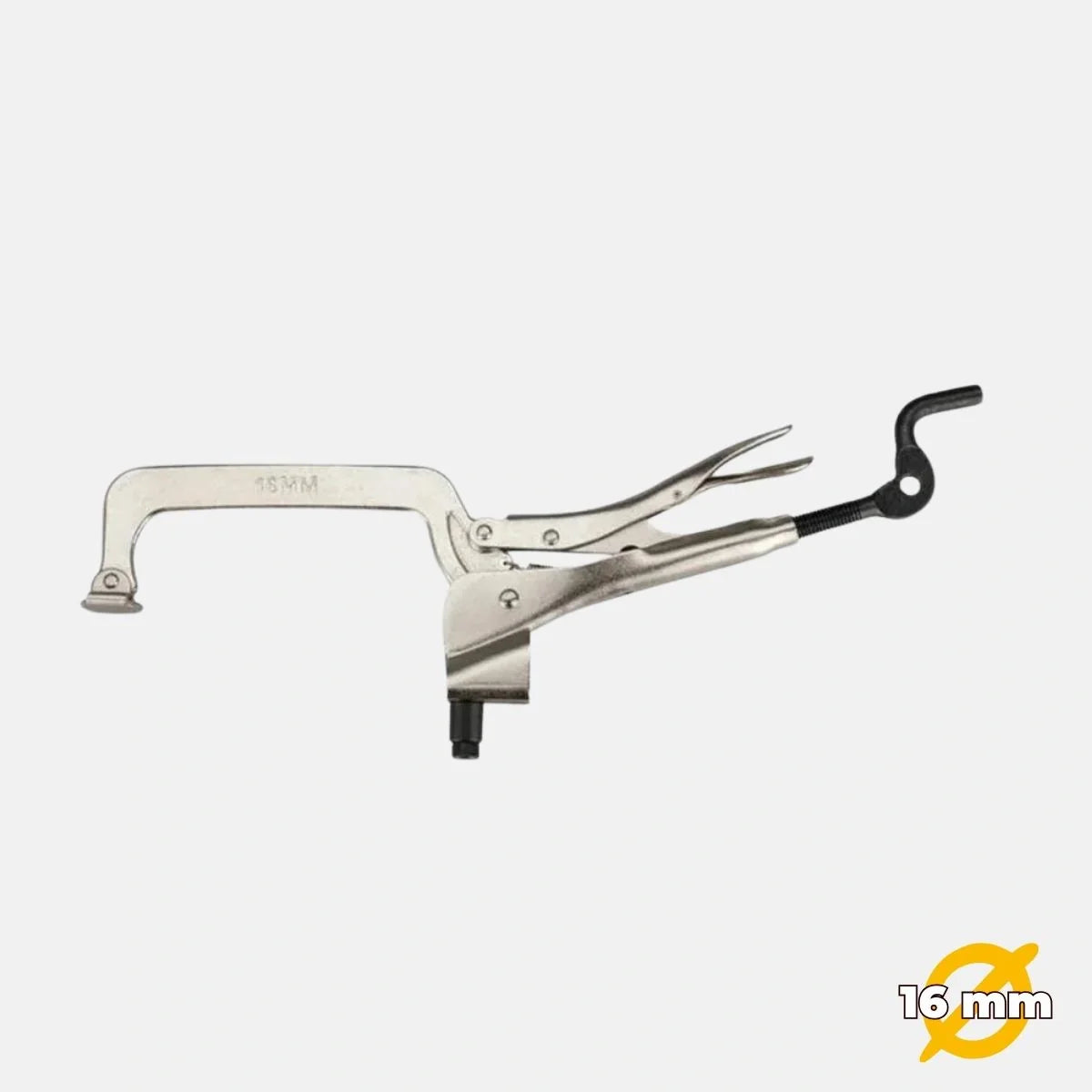

| PT14K | 155 | 120 | 265 | 0.9 |
