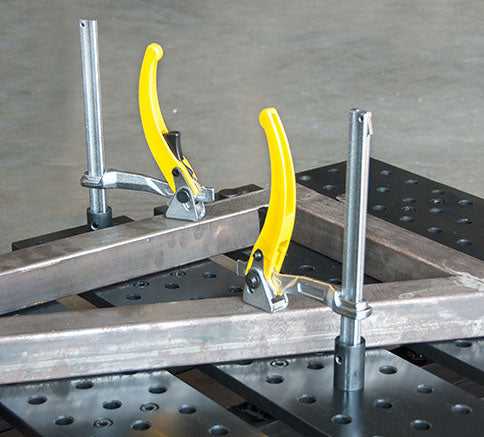

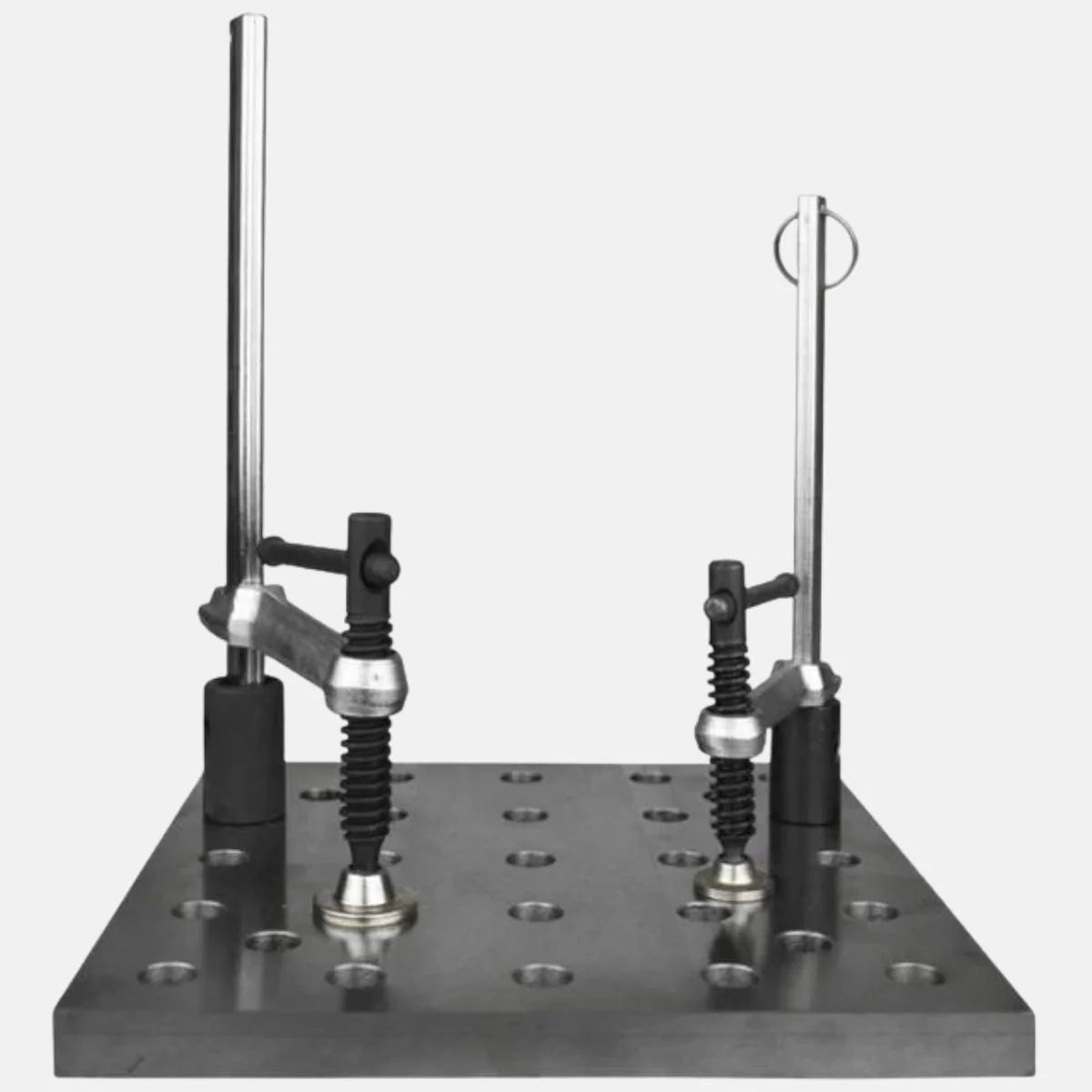

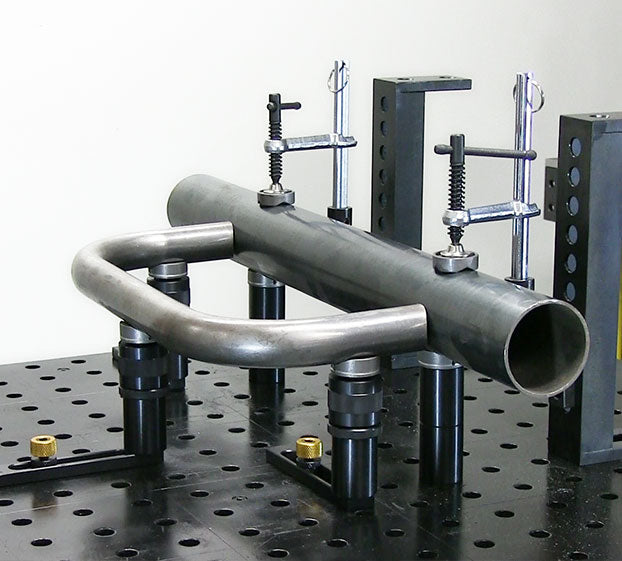

Place the Inserta Clamps into the 16mm holes on your welding table for fast, easy clamping.
Clamp in the vertical or horizontal position at any height.
The Ratchet Handle Model is ideal for tight space clamping, and the ratchet mechanism ensures rapid, vibration and torsion resistant clamping.
| Part No. | Clamping Capacity (mm) | Throat Depth (mm) | Clamping Pressure (kg) | Rail Size (mm) | Weight (kg) |
|---|---|---|---|---|---|

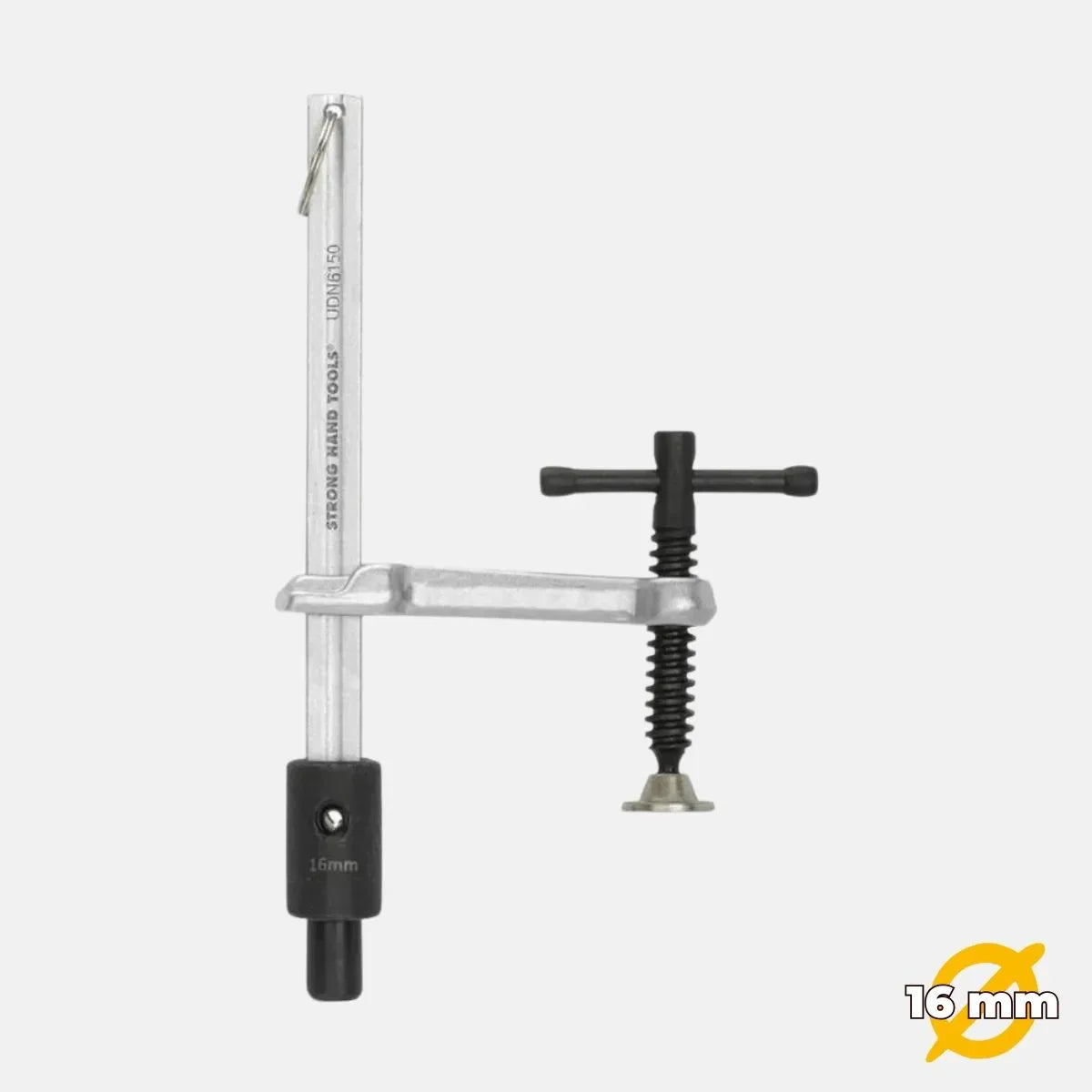

| UDN6150 | 150 | 83 | 135 | 16 x 8 | 0.6 |

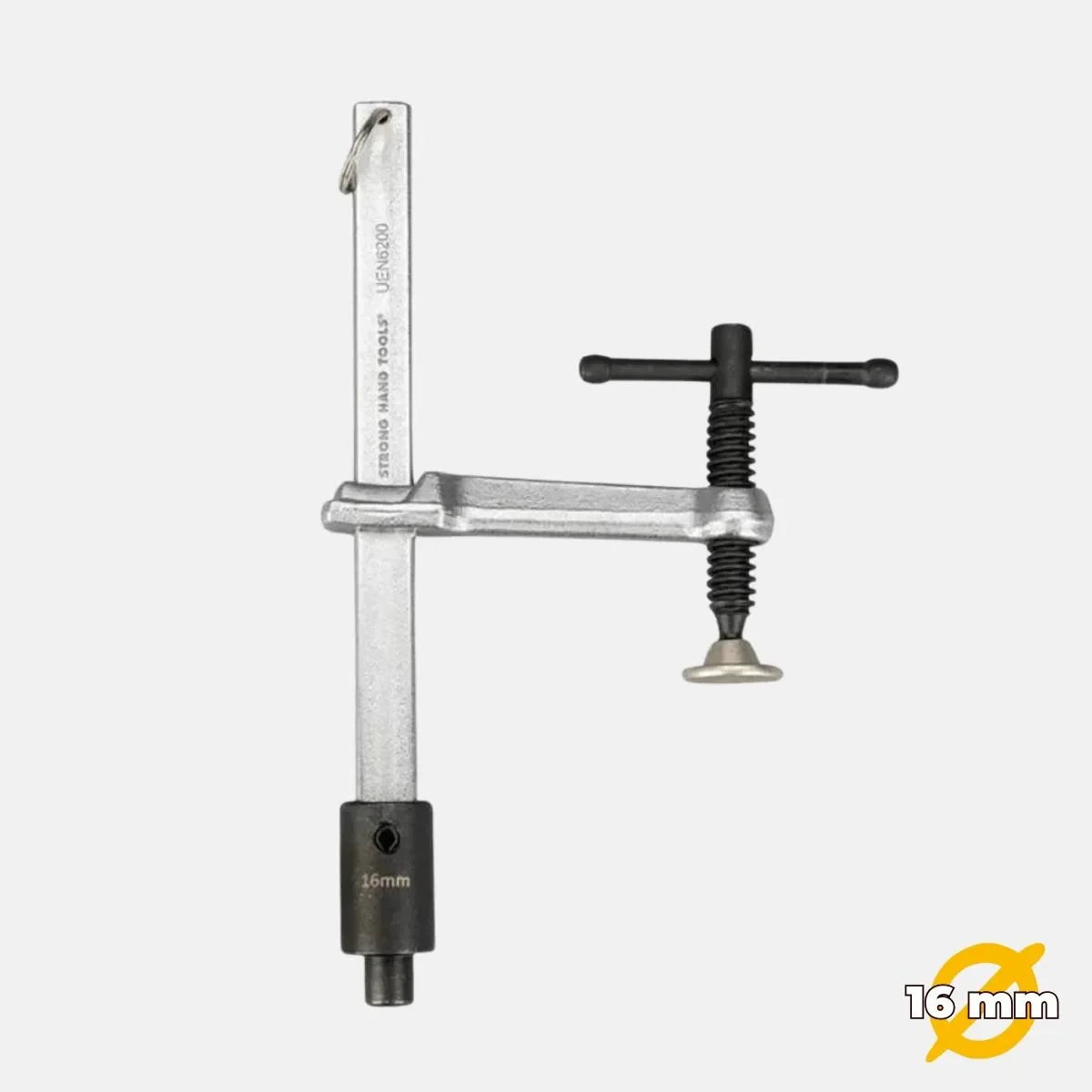

| UEN6200 | 200 | 100 | 180 | 20 x 10 | 1.0 |

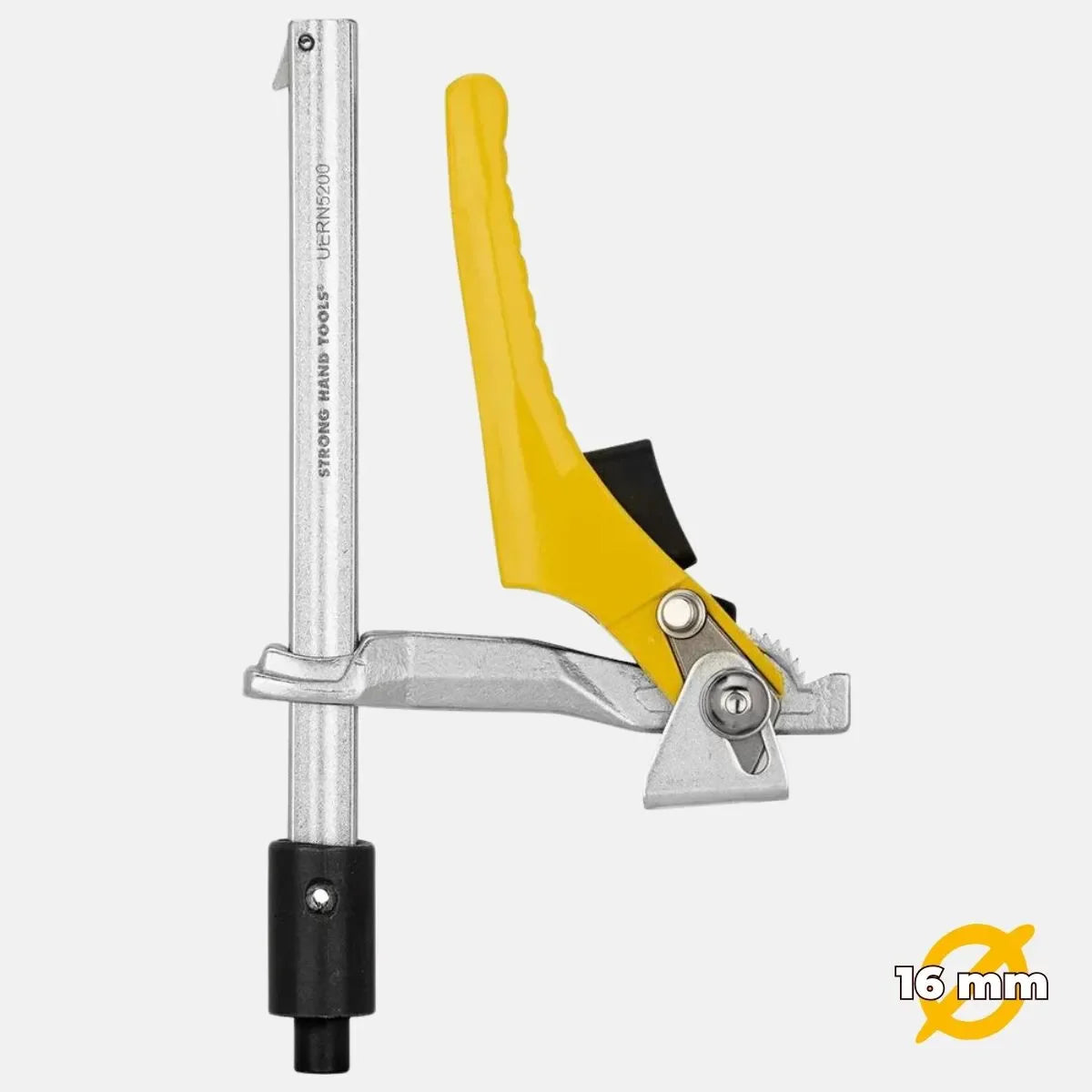

| UERN6200 | 200 | 100 | 180 | 20 x 10 | 1.0 |
